Optimizing PDF Extraction for Building a Robust RAG

Recently, Retrieval-Augmented Generation (RAG) has emerged as a prominent approach that leverages large language models for building advanced applications. However, in practical industrial settings, the primary bottleneck affecting RAG performance—especially in document retrieval—often lies not in the capabilities of the embedding model, but in the data ingestion pipeline. The process of building a RAG system begins with indexing documents, many of which are in PDF format. This typically involves using PDF parsers to extract text from the document’s pages, a crucial step that significantly impacts the overall retrieval accuracy.

Extracting text from PDFs are challenging in many aspects (can also read this):

• Complex and variable structures: PDFs are designed for visual presentation, not structured text extraction, leading to fragmented or misaligned text.
• Layout complexity: PDFs often contain multi-column formats, tables, and embedded images, making it difficult to maintain a logical reading order.
• Inconsistent text encoding: Different fonts, character encodings, or special symbols can lead to extraction errors, such as missing or garbled text.
• Discontinuous text chunks: Text might be broken into fragments that need to be reassembled into meaningful sequences.

There are various PDF extraction tools available on the market. Some companies provide paid solutions with advanced features, while several open-source Python packages, such as PyPDF and PDFPlumber, are also available. In this blog, I will present an experiment comparing the impact of different PDF extraction methods on retrieval performance. The results show that high-quality PDF extraction can significantly improve retrieval. (The code is available on Github)

PDF extraction

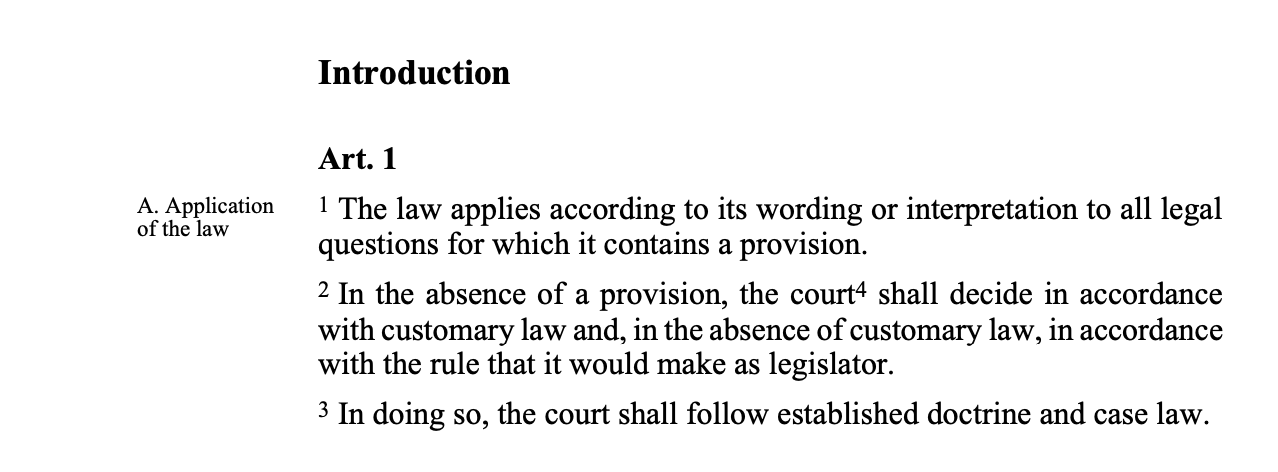

The following example is a PDF excerpt from the Swiss Civil Code. The PDF page presents a high level of complexity, with text that is discontinuously arranged and interspersed with numerous footnotes.

Here I use pdfplumber, a library built on top of pdfminer.six, that offers a wide range of customizable features for extracting text from PDFs. This package allows the extraction of pages and text while preserving the original layout. Additionally, it can parse various character properties, such as page number, text, and coordinates. For instance, the .crop() method can be used to crop a page into a specific bounding box: .crop((x0, top, x1, bottom), relative=False, strict=True).

I built two data loaders. The first one, called PDFLoader, extracts sequences directly using pdfplumber without additional postprocessing. In this approach, the raw extraction from the PDF example above appears unstructured and unnatural, as it reads lines horizontally, even when they are split into two blocks.

The other is called Custom PDFLoader, which uses pdfplumber to extract text from different boxes and combine them together. Here, I extract text from two distinct boxes: one for the left side and one for the right side of the page. I use the x0 of the word Art as the x0 for the right box and the same value as the x1 for the left box. This makes the extracted sequences more natural.

Evaluation

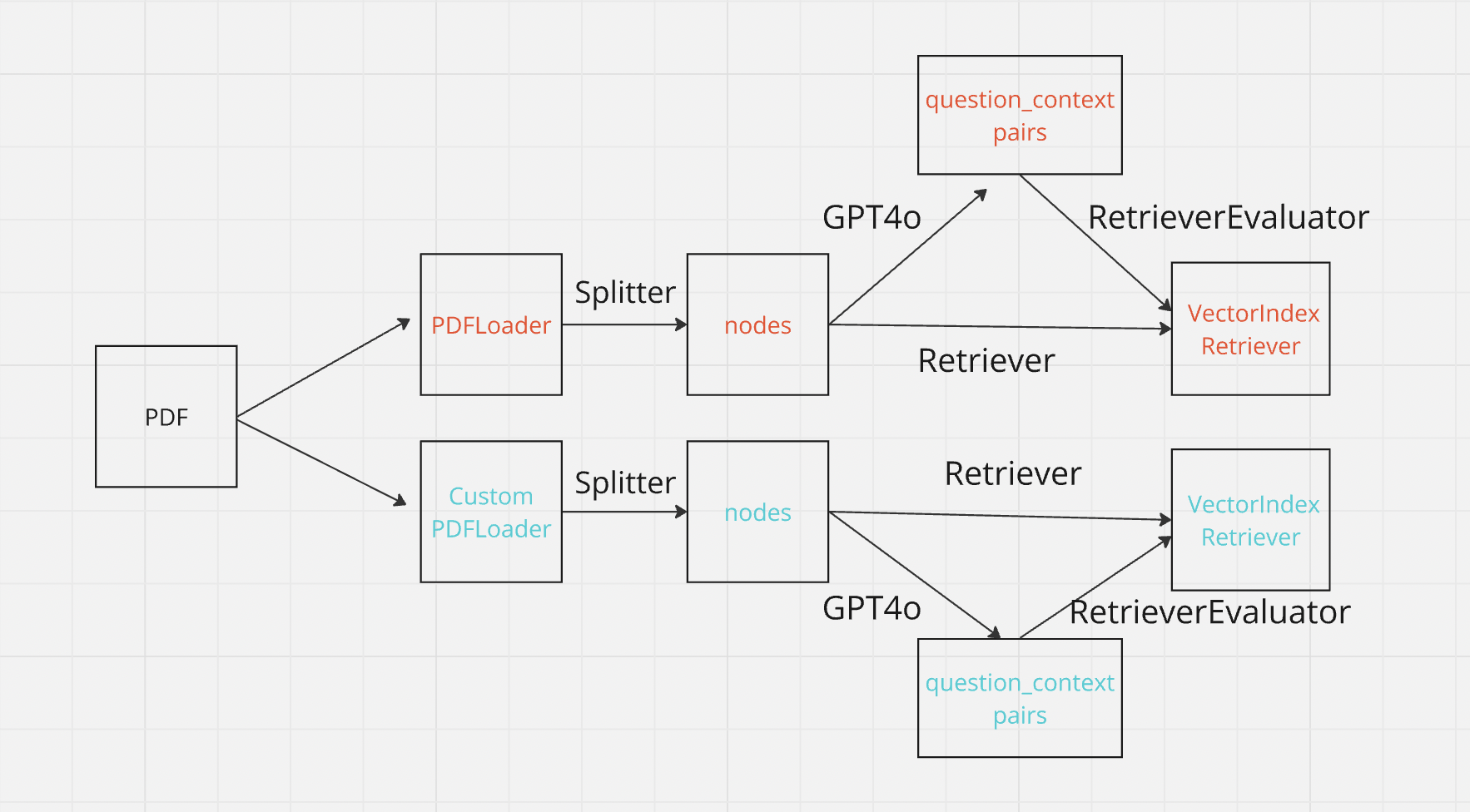

This section evaluates retrieval quality by comparing the two methods of PDF extraction: Custom PDFLoader and PDFLoader, using the RetrieverEvaluator module provided in LLAMAIndex.

• First, I split the extracted text from the PDF file Swiss Civil Code (about 350 pages), into small chunks of 1024 characters, with a chunk overlap of 200.
• Second, I created the evaluation dataset using the generate_question_context_pairs function. This function can automatically generate a set of (question, context) pairs using LLMs. I generated two questions from each context chunk with GPT-4-mini, resulting in a total number of 450 queries.
• I built a retriever using the built-in VectorStoreIndex function in LLAMAIndex, and performed retrieval using the top-k similarity method.
• Finally, I ran the RetrieverEvaluator on the evaluation dataset we generated, using the provided evaluation metrics.
  • hit-rate: the correct answer is present in the top k retrieved results
  • MRR: the reciprocal of the rank at which the first relevant result appears.
  • Precision: the fraction of relevant documents retrieved out of the total number of documents retrieved.
  • Recall: the fraction of relevant documents that were retrieved out of the total number of relevant documents available.
  • AP: the average of precision values at the ranks where relevant documents are retrieved.
  • NDCG: the quality of a ranking based on the positions of relevant documents

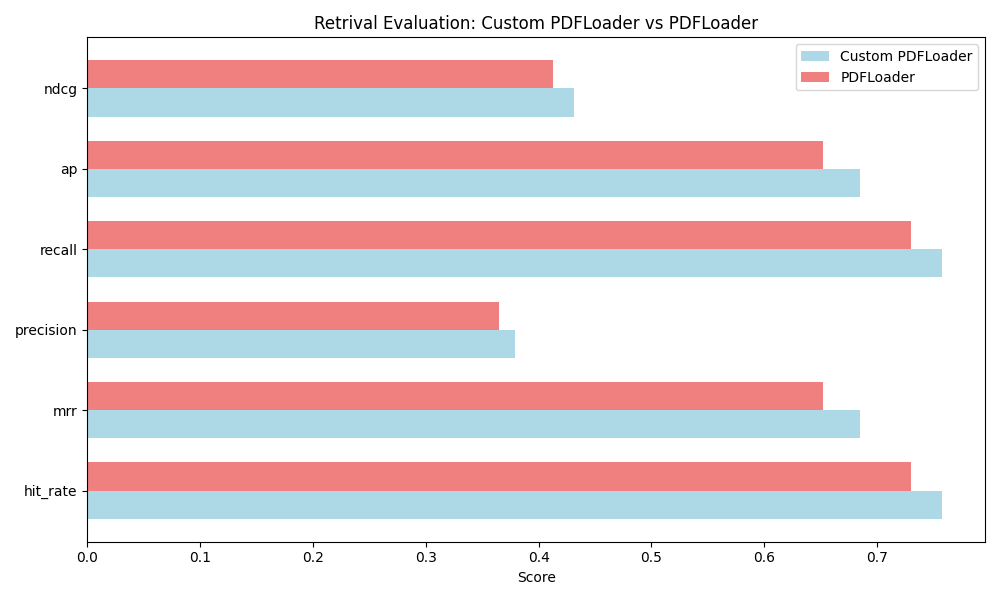

The results demonstrate a clear improvement in retrieval performance of approximately 5% when using the custom PDFLoader.

This experiment highlights that optimizing PDF extraction is crucial, and can be just as important as improving embedding models. Please note that this article focuses on PDFs containing only text. If your PDF contains more complex elements, such as images or tables, alternative methods may need to be considered. Recently, there has been a spike in interest in the new model ColPali for its use of a vision-language model to extract information for retrieval purposes. This approach demonstrates that when a document contains rich structures, such as tables and figures, leveraging modern Vision-Language Models can generate high-quality, contextualized embeddings directly from images of the document pages.
